ABOUT RSSP ( ROTARY SCRAP SURFACE PASTEURISER )

This sort of "difficult products” from a “Batch Process” to a continuous process RSSP is the best solution, bringing an important improvement in the heat exchanger coefficient.


Operational :

  • The product enters in to the exchange cylinder through a special volute, which is designed to allow for a product smooth change of trajectory.
  • The service fluid flows in counter current in to the cylinder shell.
  • On the cylinder there is the scraping shaft, which keeps the product mixed and avoid it to get stuck on the wall.
  • The rotation speed of the scraping shaft depends on products feature.
  • The shaft rotation and the product’s fluid-dynamic pressure push the scraping blades against the exchanger surface.

Key Points :

  • The special design of the product side inlet/outlet heads ensure :
    •         * Better and easier cleaning.
            * Reduction on the product stress.
            * Possibility to rotate the connections.
  • The internal components are design to ensure an easy interchangeability between the available option and a long-life resistance.
  • The design of the RSSHE is made thinking to the End Users.
  • Allows a very simple, intuitive and safety maintenance.
  • RSSHE supplied complete with a stainless steel base with skid.
  • Blades (Scraper) geometry and the material depend on the type of process and the product involved.
  • Technical Specification:

    • Max .Pressure

    15.5 bar

    Max. Temp.

    130*C

    Min. Temp.

    -10 *C

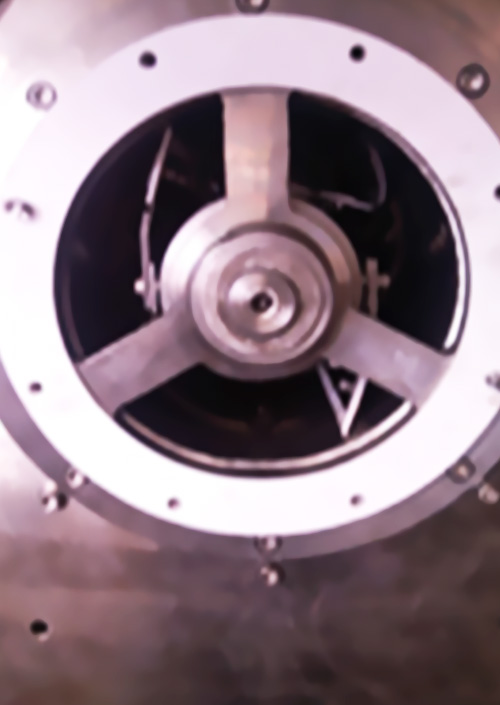

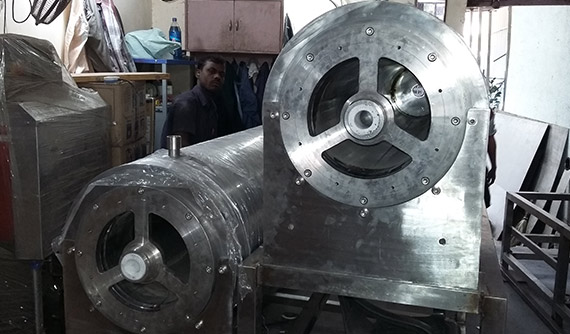

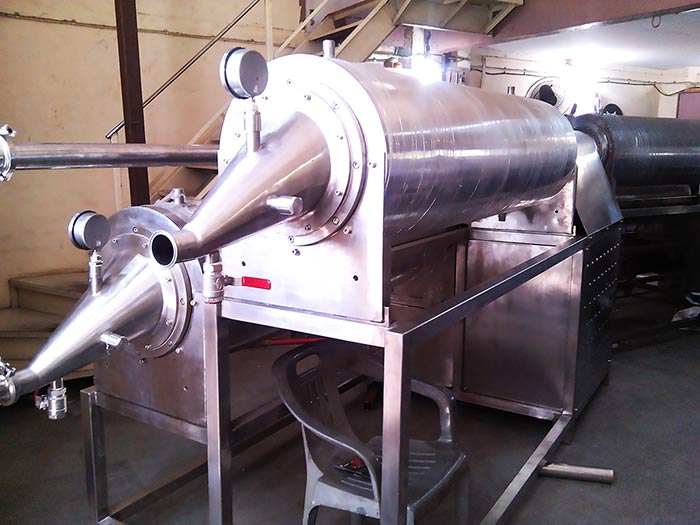

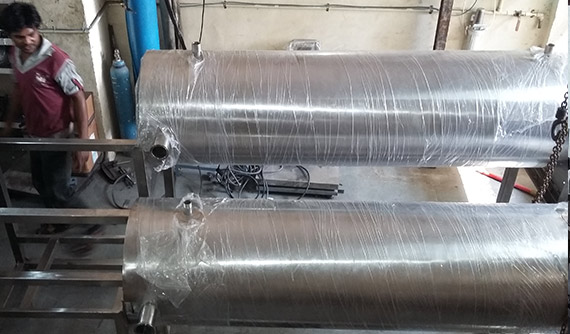

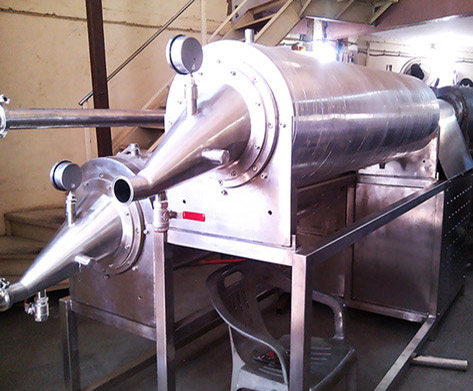

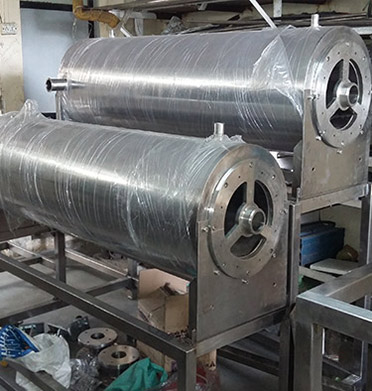

RSSP ( Rotary Scrap Surface Pasteuriser )

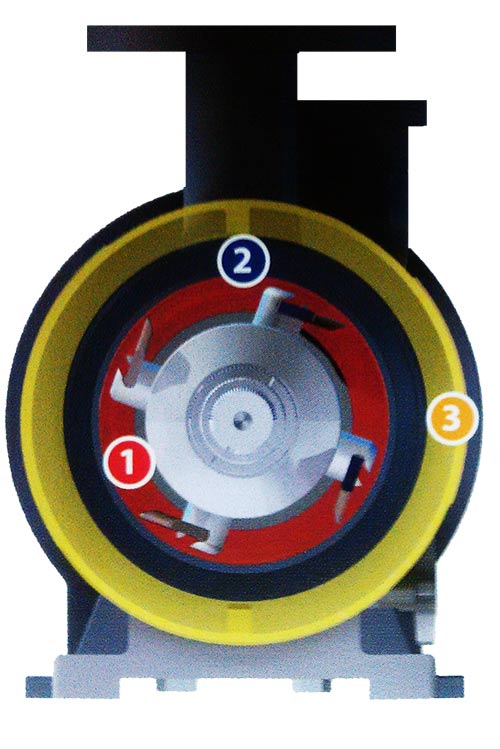

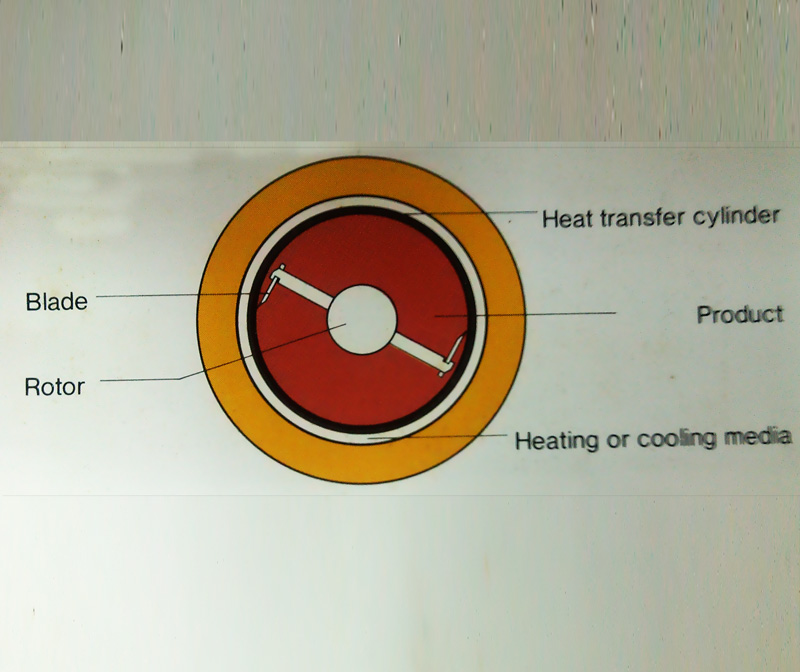

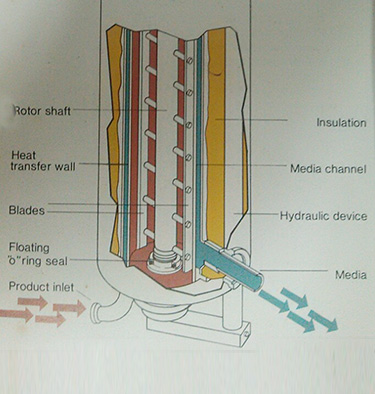

Various Cross Section Of RSSP
