ABOUT MULTIMILL
Multimill relies on impact in Air. Material is dropped axially from a feed hopper in to the communeting Chamber where it comes in contact with blades rotating at high speed. Differentially edged (Flat & Knife) Blades in desired direction of rotation achieve shear. Material entering the chamber is imparted to the periphery & passes through the circular screen tangentially and radically achieving size reduction.
Features :
- Unit is self contained and portable.
- Vertically mounted motor drives Rotor Assembly through step cone pulley & belt mechanism.
- Rack and pinion arrangement allows ease in belt adjustment.
- Four speeds are available to the Rotor shaft. Bearing Housing and Teflon seal ensure smooth drip-free rotation of the shaft.
- Variable speed options available in FLP & non FLP models.
- Rectangular charge Hopper with Slide valve for regulating the infeed of material.
- Interchangeable Perforated screen of desired hole size is held on by a stepped screen holding plate.
- Plate is located by 2 vertical studs fastened to the roof of intermediate hopper.

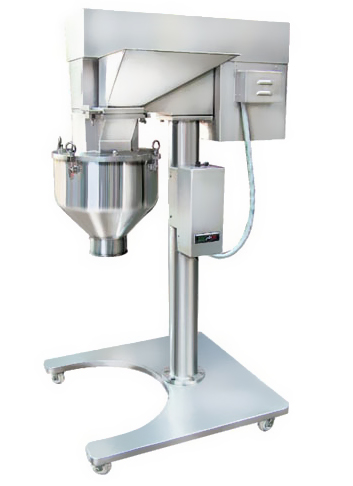

MULTIMILL
